- Size: 0.60
- Place of Origin: CHINA
- Brand Name: Sunrise
- Model Number: SG-1780
- Weight: 68.000 kg

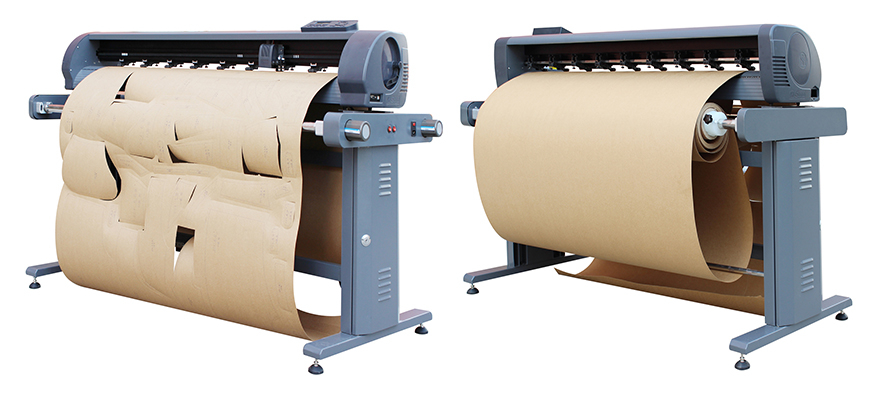

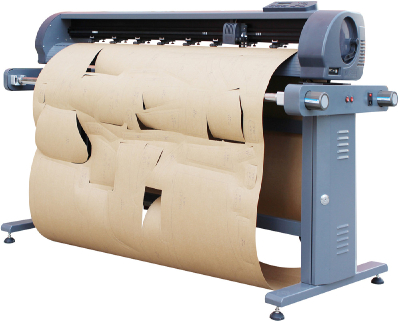

Industrial Garment Pen Cutting Plotter
Descriptions
1) Special design for cutting heavy paper up to 350g/m2, same function but low cost than flatbed cutter.
2) Both USB2.0 and RS-232 interface, easy to connect with all kinds of PC and laptop.
3) Supports all kinds of CAD software.
4) High Plotting/Cutting speed: With servo motor the max. cutting/plotting speed can reach 1200mm/s.
5) Aluminum alloy construction, ABS cover, beautiful appearance.
6) Professional structure: imported balanced linear bearing makes both thin and thick paper cutting perfectly.
7) Acceptable paper media: 80-350g/m2.
Main Parameters:
Model | SG-1380 | SG-1780 |
Max. Paper Loading Width | 1400mm(55 in.) | 1800mm(71 in.) |
Max. Plotting/Cutting Width | 1200mm(47 in.) | 1600mm(63 in.) |
Acceptable Pen | Disposable Ink and Ball Point Pens | |
Acceptable Blade | Special Cutting Blade | |
Plotting/Cutting Speed | 1200mm/s | |
Language format | HPGL、HPGL-2、DMPL | |
Equipment terminal | USB2.0/RS-232 | |
Power voltage | 220V/ 110V | |
Power frequency | 60Hz / 50Hz | |
Environmental temperature | 1°C--45°C | |
Paper roller | Stainless steel spinous roller | |
Motor | High-speed servo motor | |
Paper requirement | 80-350g/m2 | |
Dimension | 170×42×45cm/94×77×31cm | 210×42×45cm/94×77×31cm |
G.W./N.W. | 62/58kgs | 68/63kgs |
Sunrise Plotters was created by a group of people who understands the product the industry and the customer. As for understanding the product, we have developed the functions in the program that runs the plotter. And tested it and every single possible CAD system in the market for it to be compatible with PLT, DXF, DWG, and HPGL files. (Software supports: Gemini, Gerber, Optitex, Lectra, PAD System, Lectra, StyleCAD, Tukatech, AutoCAD, PolyGon, etc.)
For more than 10 years, we have been providing plotting solutions to companies in the apparel, automotive, industrial, furniture, upholstery and sewn industry and understand your needs when it comes to using a plotter. What's involved, what is the first step before getting a plotter and what is the last step to start using your plotter. When it comes to the customer, we understand what the customer wants.
Professional sales manager show you the details of our plotter and answer all of your questions; experienced technicians provide you technical support; 24×7 after-sale service give you supply when you get problem.
Software supported and Customers:
Gemini, Gerber, Optitex, Lectra, AutoCAD, StyleCAD, PAD, Tukatech, Polygon.
Skype: hx_henry1
Email: henry@cnsunrisetech.com
www.cnsunrisetech.com
