- Size: 0.68
- Place of Origin: CHINA
- Brand Name: Sunrise
- Model Number: SC-1900
- Weight: 98.000 kg

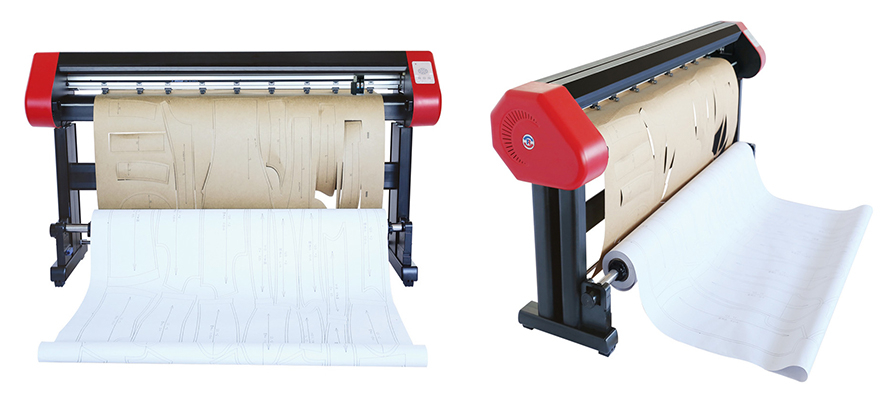

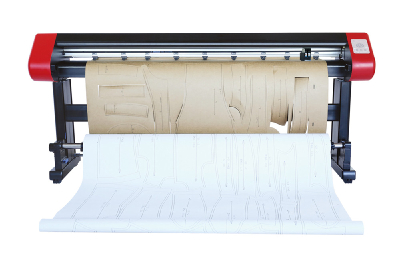

Garment Inkjet Cutting Plotter
Descriptions
1) The first company to develop the Garment Inkjet Cutting Plotter, and preserve the intellectual property and also the patent technology.
2) USB2.0 interface, easy to connect with all kinds of PC and laptop.
3) Supports all kinds of CAD software.
4) High Printing/Cutting speed: With servo motor the max. cutting/plotting speed can reach 100 M2/hour.
5) Human-friendly button and software: perfect function provides the operator great advantage when using the plotter.
6) Professional structure: imported balanced linear bearing makes both thin and thick paper cutting perfectly.
7) Acceptable paper media: 40-300g/m2. Double purpose machine: working both as a cutter and as a plotter.
Main Parameters:
Model | SC-1200 | SC-1700 | SC-1900 |
Max. Paper Loading Width | 1200mm(47 in.) | 1700mm(67 in.) | 1900mm(75 in.) |
Max. Plotting/Cutting Width | 1150mm(45 in.) | 1650mm(65 in.) | 1850mm(73 in.) |
Plotting head | Hp45 (Double cartridges, self-cleaning) | ||
Acceptable Blade | Special Cutting Blade | ||
Plotting Speed | |||
Cutting Speed | 1000mm/s | ||
Language format | HPGL、HPGL-2、DMPL | ||
Equipment terminal | USB2.0 | ||
Power voltage | 220V/ 110V | ||
Power frequency | 60Hz / 50Hz | ||
Environmental temperature | 1°C--45°C | ||
Paper roller | Stainless steel spinous roller | ||
Driving | Digital high-speed servo control | ||
Paper requirement | Printing 40g-300g, Cutting 80g-300g | ||
Resolution |
